STB Forms

Bridge Decking

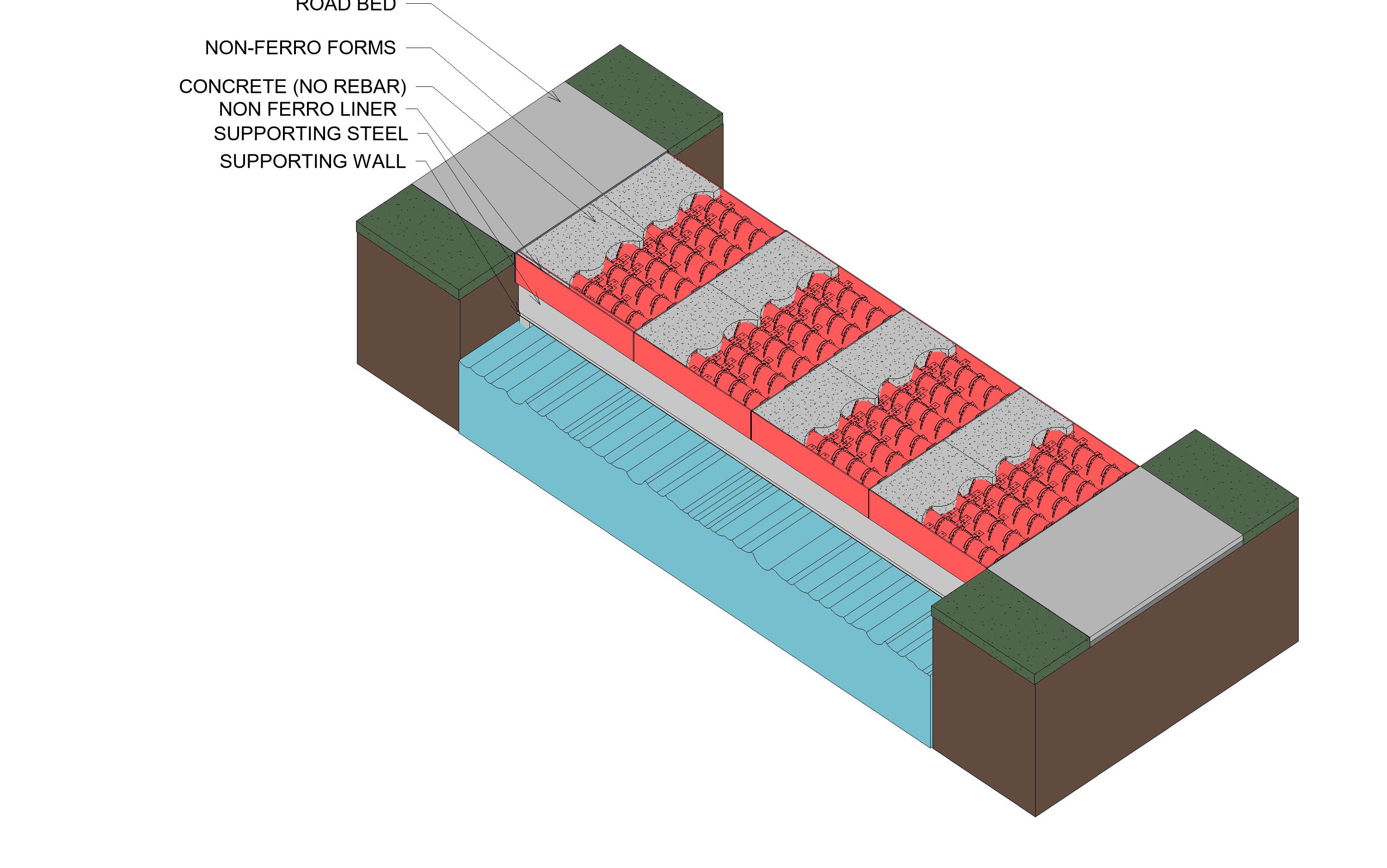

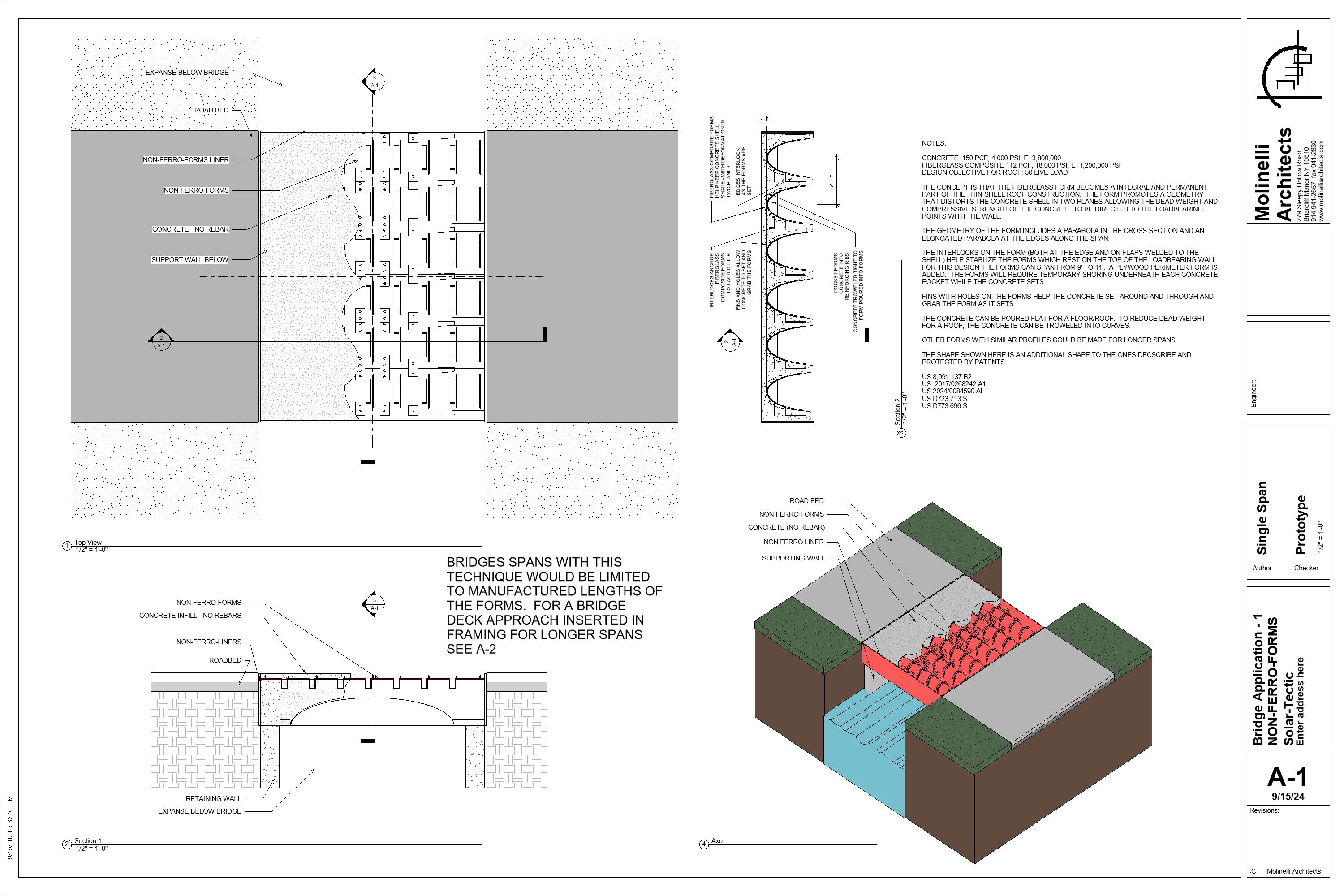

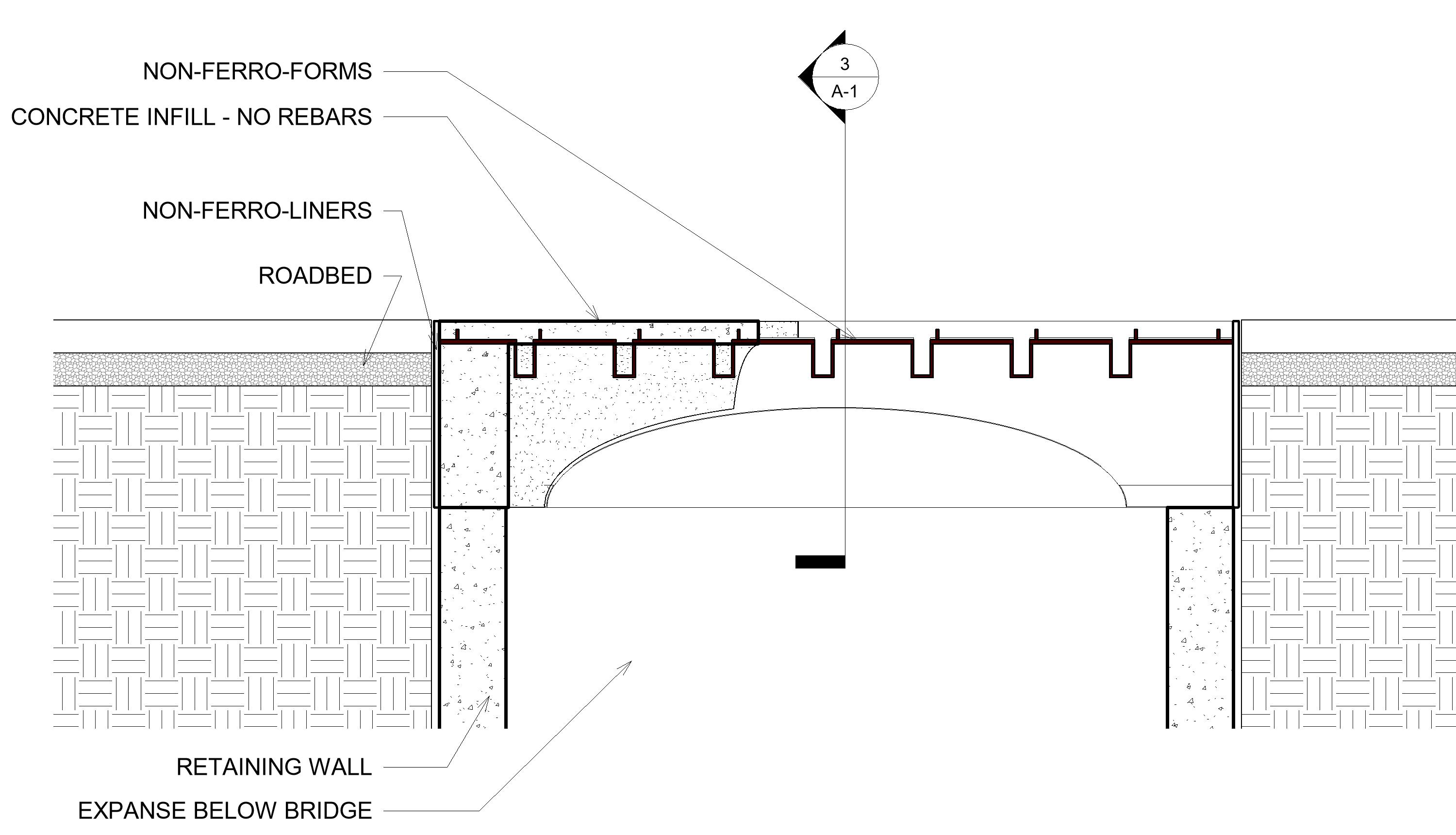

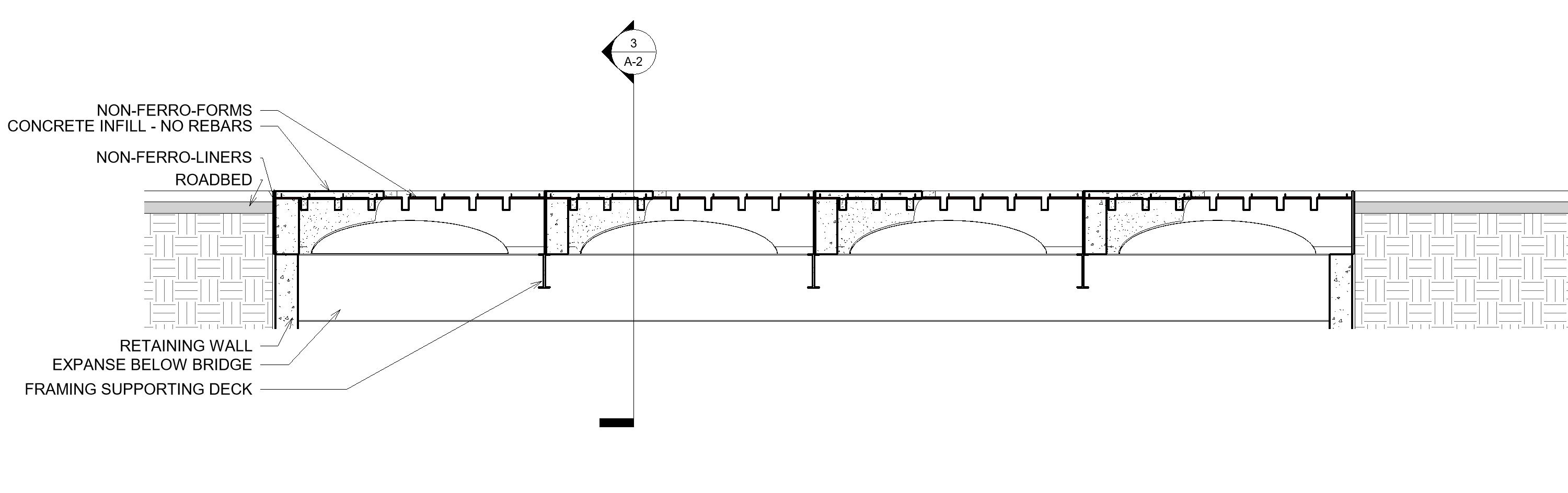

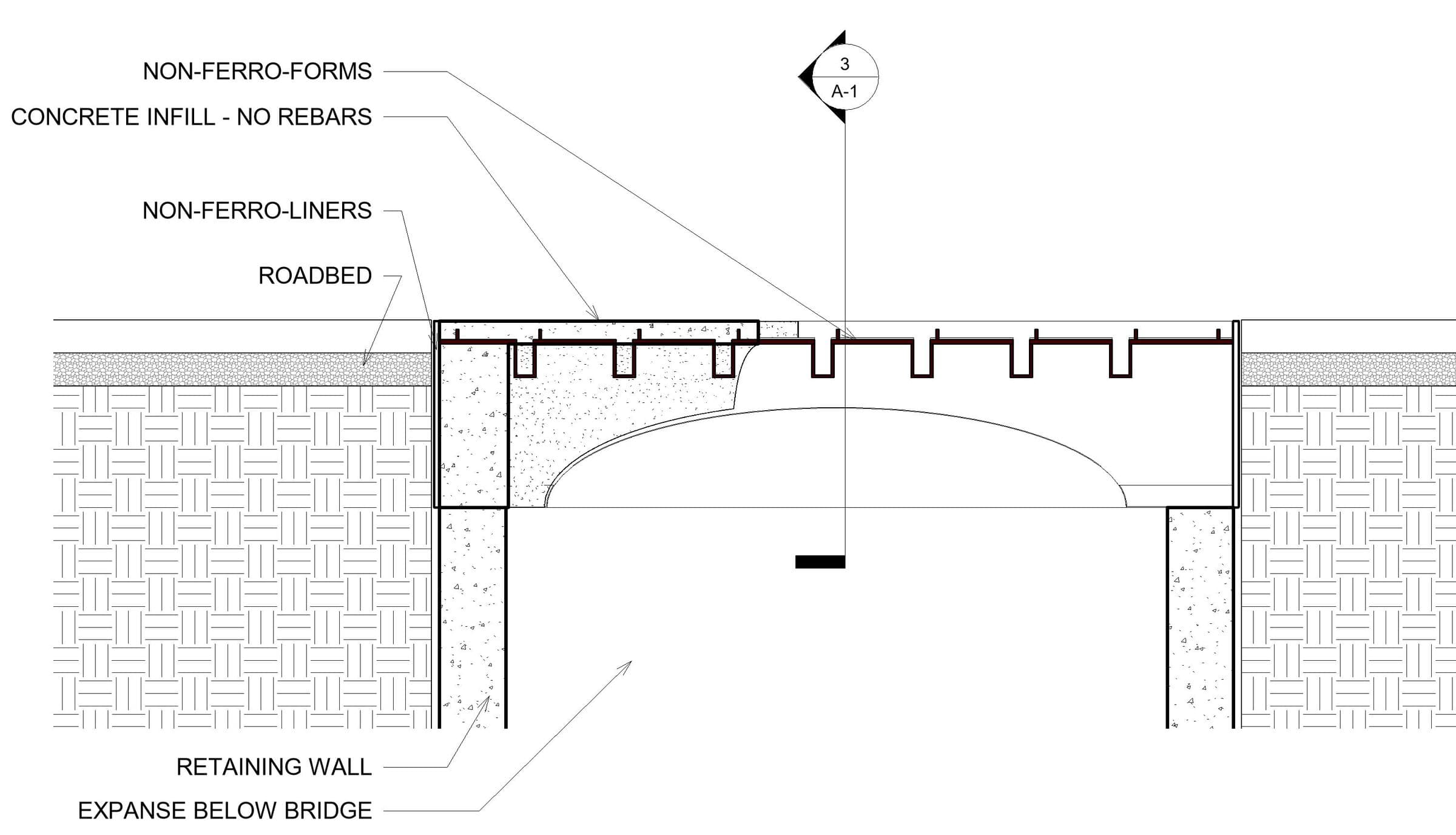

Detail section of a bridge deck showing non-ferro forms, concrete infill with no rebars, non-ferro liners, roadbed and retaining walls (opens full-size drawing in a new tab)Section drawing of a multi-span bridge deck showing non-ferro forms, concrete infill with no rebars, liners, roadbed, retaining wall and framing supporting the deck (opens full-size drawing in a new tab)Molinelli Architects drawing sheet A-1, Bridge Application: top view, sections, notes and axonometric of a single-span non-ferro-form bridge deck (opens full-size drawing in a new tab)Isometric drawing of a bridge deck built with non-ferro forms, concrete with no rebar, non-ferro liner, supporting steel and supporting wall (opens full-size drawing in a new tab)
